Tintri IntelliFlash™ HD2160-400 SAS Flash HD-Series
Accelerating mixed workloads, scaling terabytes to multiple petabytes.


IntelliFlash™ SAS Flash HD-Series


Tintri IntelliFlash™ SAS Flash HD-Series

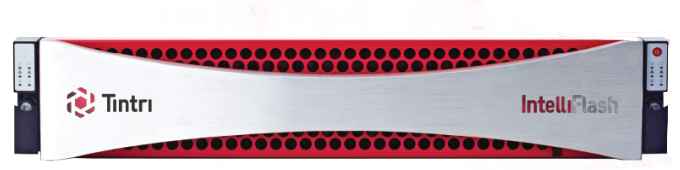

Tintri IntelliFlash™ HD2160-400
Contact us for pricing!



Dense Flash Storage Systems - The Workhorse for Your Applications

Flash storage has the power to fundamentally transform how you do business. But most solutions force you to compromise on performance, price, or features. The Tintri IntelliFlash HD-Series intelligent infrastructure is a fourth-generation storage solution that delivers an exceptional user experience through automation, analytic insights, and a variety of time-saving management features to drive your most valuable workloads in today’s data centers.

At the core of IntelliFlash HD-Series systems is the same software architecture that powers Tintri’s award-winning portfolio of N-Series and T-Series storage systems. The IntelliFlash platform delivers proven innovation in flash management, data persistence, and data management, enabling the HD-Series to deliver unprecedented levels of consolidation, simplicity, and economics. Enterprises that have deployed multiple storage systems to support their application workloads can now consolidate them onto a single system to achieve better economics at scale.

Consolidate your enterprise applications onto a scalable, performant, and easy-to-use intelligent infrastructure. When the data that drives your lineof-business applications resides on IntelliFlash HD-Series, your operations are dramatically simplified. Go from pilot to production with a few clicks of a button. Enjoy a simplified administrative experience so you can focus on your business. Experience Different!

Features:

  • Cloud-Based Intelligent Analytics – Visibility across all IntelliFlash systems, with insights that keep infrastructure operating at peak efficiency and availability
  • Unified Storage - Concurrent native block (FC, iSCSI) and file (NFS, SMB3) access
  • Live Dataset Migration – Seamless live migration of iSCSI/FC LUNs across IntelliFlash systems
  • IntelliFlash S3 Cloud Connector – Hybrid cloud capabilities, enabling connectivity to public cloud or any S3-compatible object storage
  • Sustained Performance – High throughput at low latency for mixed workload consolidation
  • Comprehensive Data Services – Inline deduplication and compression, snapshots, read/write clones, and thin provisioning
  • Affordable Disaster Recovery – Replicate between NVMe-flash, SASflash, and hybrid systems
  • VMware® Support – vCenter® plug-in and integration with VMware SRM and VAAI
  • Microsoft Hyper-V Support – PowerShell Toolkit plus SMB3 Enhancements for Hyper-V

Benefits:

  • Simplified Management and Analytics – Common GUI management for all IntelliFlash systems
  • High Capacity and Scalability – Over 5PB‡ of effective all-flash or hybrid expansion capacity in a compact 10U footprint
  • Unified Storage – Native concurrent block (FC, iSCSI) and file (NFS, SMB3) access
  • Multiple Mixed Workloads – Support bare metal applications along with certified configurations for Oracle, Microsoft, VMware and many other environments.
  • Hybrid Cloud – Back up local snapshots to the cloud or quickly migrate volumes for bring-up on any S3-compliant object storage.
  • Performance You Want – IntelliFlash HD-series confidently handles critical enterprise workloads.
  • Capacity You Need – Without compromising on performance.
  • Reduced OPEX – With a platform that is energy efficient, offers inline data reduction, and is easy to maintain, so you can save on power, cooling, and labor

IntelliFlash High-Density Flash Storage Systems Specifications:

Models HD2040-100 HD2080-200 HD2160-400
Storage Capacity
All-Flash RAW Capacity (TB)1 92 to 645 184 to 1290 368 to 2580
All-Flash Effective Capacity (TB)2 339 to 2511 662 to 5022 1325 to 10044
Storage Controllers Dual Controller (active/active), fully redundant architecture
Ethernet Options 2x 10GbE, 4x 10GbE, 2x 40GbE
Fibre Channel Options 2x 8Gbps, 2x 16Gbps, 4x 16Gbps
Network Admin Ports 2x 1GbE, 1x 1GbE (IPMI)
Physical Specificatons
Controller Form Factor 2RU with 24 SAS SDD slots
Physical Dimensions (HxWxD) 3.5” x 17.2” x 25.25” (89mm x 437mm x 642mm)
Weight 82lbs (37kg)
Typical Power Usage (Watt) 495W (1690BTU/hr)
Environmental Specifications Operating temperature: 10°C to 35°C (50°F ~ 95°F)
Non-operating temperature: -40°C to 70°C (-40°F to 158°F)
Operating relative humidity: 8% to 90% (non-condensing)
Non-operating relative humidity: 5% to 95% (non-condensing)
Software Services
Block and File Protocols SAN protocols (iSCSI, Fibre Channel), NAS protocols (NFS, SMB)
Capabilities IntelliFlash Operating Environment:
Real-time deduplication and compression, snapshots and clones, space efficient thin provisioning, remote replication, S3 Cloud Connector, Live Dataset Migration, data-at-rest and data-in-flight encryption
Management IntelliFlash web UI, configuration wizard, Analytics for IntelliFlash, VMware plug-in for vCenter and support for vCenter Linked Mode, RBAC, SRA and VAAI NAS; Microsoft SCVMM/SMI-S, IP-KVM, SNMP, PowerShell Toolkit
Hardware Availability Redundant storage controllers, fans, power supplies, and network ports; removable SSDs, SAS expansion
Warranty
Basic 24×7 support via email and phone, next business day hardware replacement for defective parts and software updates for the first 90 days.
Optional Standard and Premier Service.

1 Values indicated are RAW capacity. One MB is equal to one million bytes, one GB is equal to one billion bytes and one TB equals 1,000GB (one trillion bytes) when referring to storage capacity. Accessible capacity will vary from the stated capacity due to formatting and partitioning of the hard drives, the operating system and other factors.
2 Effective capacity assumes capacity after dual-parity, data protection, and metadata overhead, and includes the benefit of data reduction with inline deduplication and compression. Data Reduction is calculated based on 80% efficiency. This efficiency can differ based on workload and or expansion shelf configuration. Where a range is present, the values are Min - Max.

Max All Flash effective capacity calculated based on the following expansion units attachments: HD2160-400 + 6x FE-400, HD2080-200 + 6x FE-200, HD2040-100 + 6x FE-100

Top Five Reasons to Deploy IntelliFlash™ HD-Series

Consolidate your enterprise applications onto a scalable, performant, and easy-to-use intelligent infrastructure. When the data that drives your business resides on Tintri IntelliFlash HD-Series, your operations are dramatically simplified. Go from pilot to production with a few clicks. Enjoy a simplified administrative experience so you can focus on your business.

The HD-Series hyper-consolidates mixed workloads onto a single dense-flash storage platform. Enable both your virtualized and bare metal applications to thrive by accelerating transactions and simplifying workflows. With high performance at low latency, high density at scale, and comprehensive data services and analytics, IntelliFlash HD-Series easily fits into any data center.

Accelerate your business data strategy with intelligent infrastructure, IntelliFlash HD-Series!

1. Fast Got Faster – Run Your Apps at the Speed of Memory

IntelliFlash HD-Series offers intelligent infrastructure with patented metadata acceleration and enterprise data services. These systems bolster your business performance by delivering high throughput for mixed workload consolidation. By combining high performance and low latency with high capacity you can simultaneously support analytics, simulations, and data warehousing applications while supercharging business applications. You now have the power to upgrade to intelligent infrastructure and set new business targets.

2. Dense Got Denser – Deploy Performance Workloads at Scale

Every enterprise is struggling to manage explosive data growth; unfortunately, data center floor space, power, and cooling are key constraints that force IT administrators to find new ways of doing more with less. A creative solution is to combine the benefits of all-flash performance and the economics of SAS capacity to seamlessly increase storage density and capacity. When you deploy IntelliFlash HD-Series with flash expansion shelves you can get up to 10PB of effective capacity in just 14RU.

3. Rich Got Richer – Seamless Hybrid Cloud Data Mobility

IntelliFlash HD-Series systems come with rich enterprise data management functionality: thin provisioning, deduplication, snapshots, replication, and cloning. In addition, we support hybrid cloud management and data mobility between on-premises storage and public clouds. The IntelliFlash S3 Cloud Connector supports backing up local snapshots to the cloud or quickly migrating volumes for bring-up on the cloud. This seamlessly extends private cloud data resources to the public cloud or to any S3-compliant object storage for better data center storage economics.

4. Simple Got Simpler – Optimize Your Investment

As enterprise data growth continues at an accelerated pace, organizations are under mounting pressure to make the best use of their storage investments. IntelliFlash HD-Series systems simplify and optimize storage resources by supporting multiple storage media types, SAN (iSCSI, FC) and NAS (NFS, SMB3) protocols, and both physical and virtualized environments. You can choose from SAS-flash, dense-flash, and HDDs all on a single platform running a common OE. In addition, IntelliFlash systems are VM-aware. They provide VM-level management and integrate with key VMware, Microsoft, Citrix and Oracle virtualized server and desktop technologies to simplify provisioning, backups, disaster recovery, cloning and more. The versatility of IntelliFlash HD-Series simplifies your storage environment while protecting your investment as your business needs change.

5. All-Flash Systems – The Workhorse for Your Applications

There are many disparate data types found across the data center and every application has its own unique response time requirements. IntelliFlash HD-Series combines software-optimized flash management, flexibility at scale, and robust enterprise data services and analytics. This delivers high performance at low latency with scalable capacity to accelerate your business application workloads.

Instead of managing multiple silos from different storage vendors, you can instead deploy IntelliFlash HD-Series and select flash or hybrid expansion shelves as dictated by your application performance, capacity, and economic requirements. Plus, you can manage all your IntelliFlash systems with the same administrative workflows and easyto-use GUI.

Documentation:

Download the Tintri IntelliFlash™ SAS Flash HD-Series Datasheet (PDF).
